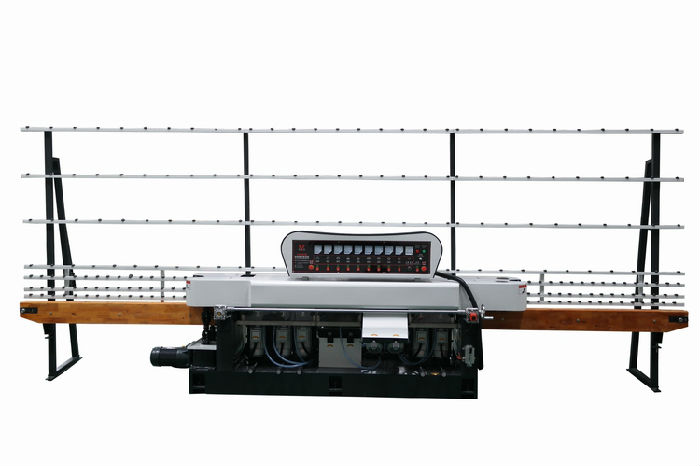

YHN-9 grinding head rock plate straight edge grinding machine
I. Product introduction:
1. It is suitable for the grinding of straight edge and 45° edge of flat glass of different thickness and size.
2. Rough grinding, fine grinding, polishing and chamfering are finished in one processing.
3. The front and rear girders, the base bed and the grinding head adjusting seats are made of high quality cast iron material, after a long time of high temperature annealing treatment, and then divided into rough, fine processing, large load, stable performance.
4. The front and rear pressing plates are made of 40Cr segment material, and the grinding surface is refined after high-frequency quenching treatment, making it more durable.
5, advanced structure, high accuracy, easy operation, high efficiency, mass process, furniture, home appliances, construction and other industries edge grinding processing preferred equipment.
II. Main performance parameters:
Model: YHN-9 grinding head rock plate straight edge grinding machine edge
Speed per minute: 0.5-6m /min
Maximum processing size: 3000x3000mm
Minimum machining ruler: 80x80mm
Processing thickness range: 3-25mm
Machine power: 19.5KW
Machine size: 7400X1000X2500CM
Machine weight: 3200kg
